What is a ViraClinAir®?

The first computer-controlled room air purifier of its kind


ViraViraClinAir® is the first computer-controlled Indoor air purifier of its kind. He is capable of All the air in a room is closed in a very short time clean and keep the air virucidal and disinfectant treat. ViraClinAir® can be excellently integrated into the retrofitting a wide variety of rooms offers a very good value for money and was made special for use in the Corona crisis in Germany
developed and manufactured in Switzerland.

FOR WHOME IS ViraClinAir®?

Especially for those branches that have suffered from Corona most.


The ViraClinAir® room air purifier has been  developed to  remove  germs from used  air in  rooms from 50 to 200 square meters. It is easy to assemble and offers an attractive price-performance ratio that is also affordable and, above all, easy to retrofit for smaller businesses such as restaurants, fitness studios and schools.
Best to be installed in restaurants, schools, conference- and seminar rooms as well as offices.

Why to use ViraClinAir®?

Because it closes functional gaps and provides security


The ViraClinAir® room air purifier does away with all previous performance and effectiveness concerns of conventional virucidal air purifiers. It can be easily set up in meeting rooms of all kinds and immediately prevents possible corona infections by preventing the virus from being transmitted via aerosols



In contrast to previous new "Corona" air purifiers:
  • ViraClinAir® generates a significantly stronger air exchange with a low sound level
  • With special air nozzles on the ceiling, ViraClinAir® ensures that the cleaned air is evenly distributed in the room
  • Prevents ViraClinAir® side air currents that can transmit viruses from one person to another.
  • ViraClinAir® fulfills a 6 to 20-fold air change rate per hour
  • Is ViraClinAir® also suitable for larger rooms up to 200 square meters with a changing and sometimes larger number of people, such as in classrooms or restaurants
  • ViraClinAir® monitors the air quality by sensor with alarm functions
  • ViraClinAir® constantly controls its filter and disinfection functions by sensor
  • ViraClinAir® disinfects itself before changing the filter.
  • The ViraClinAir® can be provided with a connection for fresh air supply.
ViraClinAir® moves the human breath in rooms, like the air is moved in airplanes, from above downwards. Hereby an exchange of breath is prevented as long as a minimum distance of 1.5m is kept.

THE WORKING PRINCIPLE of the ViraClinAir®

Purified air, blows contaminated breath away from the airways towards the floor, where it is sucked in and cleaned by the ViraClinAir®.


As in an airplane, an almost vertical airflow is directed from top to bottom, so that an aerosol cloud released at head height cannot be transmitted to someone on the other side.



  • The air has to flow out near the ceiling and the entire room from above
    Flow downwards, ViraClinAir® has a variable height of up to 3.50 m and can therefore be adapted to most rooms.
  • ViraClinAir® can be used in rooms up to 200 square meters
  • ViraClinAir® generates 6 to 30 air changes per hour, depending on the size of the room
  • With the use of ViraClinAir® there is no unpleasant draft because the device works with a maximum flow rate of 0.15m / h.
  • Specially shaped and individually adjusted nozzles for the desired air distribution.
  • ViraClinAir® monitors and documents the room climate + all of its functions.
  • The room climate is shown on a touch display and the device is operated.
  • ViraClinAir® is made up of standard ventilation technology elements and can therefore be ideally adapted to any space.
  • ViraClinAir® is child's play to install, can be easily dismantled for transport and can be easily moved even when set up thanks to lockable wheels.
  • ViraClinAir® is intended as an efficient solution to the corona problem and is designed for meeting rooms that do not have a built-in ventilation system with fresh air supply. The existingair is sterilized quickly and safely.
  • A necessary fresh air supply with oxygen is indicated by the system with a traffic light.

AIR FILTERING and DISINFECTION

In 4 steps to clean, sterile air

Fine Filter in the base of ViraClinAir®

1st Stage: Fine filter ISO ePM2,5 Filter(F7)

In this preliminary stage, the air is first through a fine filter class F7 pre-cleaned and, for example, freed from the following particles :

  • Insects
  • Textile fiber and hair
  • Sand
  • Fly ash
  • pollen
  • Spores, pollen, lint


The  filter  change  can  be  carried  out  quickly  and  easily  even  by  a  layperson.  The  system also  automatically monitors the filter quality and issues an error message as soon       as it has to bechanged.

2nd Stage: HEPA particulate filter Kl. H13/14

The pre-filtered air is now in a HEPA filter class H13 / 14 freed from almost all remaining germs as follows.
  • Aerosols
  • Germs, bacteria, viruses
  • tobacco smoke
  • Corona viruses


The filter can be changed quickly and easily, even by  a layperson. In addition, the system automatically monitors the filter quality and issues an error message as soon as it has to be changed.
HEPA filter of ViraClinAir®
UV-C  light tubes of ViraClinAir® Functionally assured UV-C can not leak out .

3rd Stage: UV-C radiation

This is followed by the final disinfection of any remaining four using UV-C radiation
The system is dimensioned so that when the maximum amount of air is released, the UV-C light kills possible viruses in the air with absolute certainty. UVC dosage: According to David Welch, Manuela Buonanno and colleagues, 2mJ / cm² are necessary. The ViraClinAir® works with a light output of 50W = 50 Joule / sec and therefore much higher. The UV-C radiation is 100% for humans safe as it cannot escape from the device under any circumstances.

4th Stage: Self-disinfection of the filters

It is used to self-disinfect the filters and the system

It is recommended from time to time to carry out a disinfection of the system once a month using the built-in disinfection generator with  activated  oxygen  or  hydrogen  peroxide.  The  disinfection generator is activated for this purpose. When the function is switched on, the entire system and especially the filters are freed from any virus load. The disinfection generator may only be operated in the room without people.
The system controls this independently.
After activation, the room is queried by a proximity sensor before cleaning starts. The disinfection generator only starts when everyone has left the room.  It  then  runs for 1 hour. If someone should enter the room during this time, the disinfection Generator is switched off immediately.It makes sense to switch on the disinfection generator    only    after    the operating hours have ended overnight, as the room cannot be re-entered until 30 minutes after the end of cleaning. This makes changing the filter, albeit simple, rarely necessary. The system reports self-monitoring when a filter change is necessary.

Ozone, known from the atmosphere and the disinfecting effect in baby swimming pools, remains an irritant gas that is only used in the ViraClinAir® cleaning program under the highest safety precautions.

SENSOR MONITOR AND CONTROL DISPLAY

Makes what the eye cannot see, visible and comprehensible.


The sensors installed in the ViraClinAir® measure all important air values, which are recorded and displayed in the form of a diagram on the display. Through the documentation, the air condition in the room can be constantly controlled and regulated. A necessary supply of fresh air with oxygen is indicated by the system via traffic lights.
GREEN air is OK

YELLOW Air still OK but soon ventilate

RED: penetrate ventilation

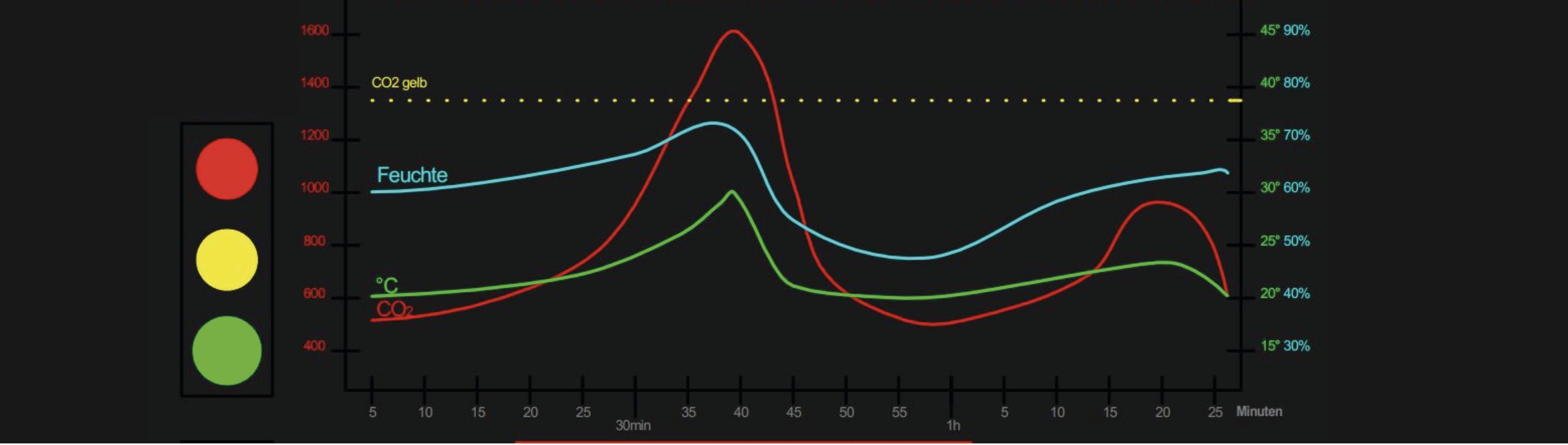

Picture: Monitor for monitoring the air values, for controlling and displaying the system automatics with warning display in the traffic light system.

Moniored Parameters:


CO2 concentration oft he air
A CO2 sensor displays the air condition and gives an alarm for ventilation when the CO2 values become critical. (See traffic light display in the display) The CO2 sensor diagram shows the courseof the CO2 increase so that ventilation can be carried out at an early stage.Through a ventilationoutlet, an automatic fresh air ventilation can be connected.

Aerosol content of the air
Aerosol content, shows the exposure to breathing air and regulates the amount of air released in automatic mode. The aerosol diagram shows the course of the aerosol content of the air after switching on the ventilation.

Room temperature
Sensor, measures the room temperature. The temperature diagram shows the process with heating with a closed window and cooling with an open window.

Humidity
The humidity diagram shows the increase in humidity, mostly caused by the air breathed by the people present.

Fan strength / air exchange rate
The air change rate shows the change rate per hour. Depending on the number of people in the room, this is increased or decreased in order to save energy. The air exchange rate can be set manually or automatically regulated by the system via the aerosol sensor. The self- monitoring of the system always ensures a sufficient air exchange rate, according to the size of the room and the number of people in the room.

Air passage filter
The measurement of the filter pressure is used to monitor the filter function. As soon as these are full and need to be changed, the system sounds an alarm. A filter change is easily possible even for a layperson.

UV-C light intensity
The UV-C tubes used have a service life of approx. 9000 hours. If the light intensity falls below a limit value, the system triggers an alarm. And the UV tubes have to be changed

Documentation
All measured values are documented by the system with date and time and can be read out at any time

Password
A password takes you to the service settings

WLAN
The system has WLAN access, documented measured values can be queried via WLAN.

Documentation of air parameters on the display

SELF-CONTROL

Safety through failure warning and maintenance information

he device permanently checks itself for safe function and issues an immediate warning message on the display. Depending on the urgency, this can be an indication of necessary maintenance or an alarm indicating a failure and an immediate reaction by the operator.

What is monitored:

  • The UV-C light intensity, to control the UV light tubes.
  • The pressure difference of the filter to determine if filter replacement is necessary
  • The function of the fan motor
  • Whether there are people in the room, as cleaning with active oxygen is only carried out in the absence of people.

OPERATING MODES

4 modes of operation can be used as required.

Manual control:

The system regulates itself, but the air exchange rate can be adjusted manually.

Automatic:
The system regulates itself and constantly maintains the minimum required performance level. The amount of air converted depends on the state of the air, especially the aerosol content.


Stand-by mode:
The stand-by mode corresponds to the automatic mode. The system regulates itself and constantly maintains the minimum required performance level. The amount of air converted depends on the state of the air, especially the aerosol content. If the system detects that there has been no person in the room for a long time, the system switches itself off. As soon as a person enters the room again, the ViraClinAir® automatically switches on again.


Self-cleaning:
The ViraClinAir® frees itself from any viral load using active oxygen. Operation with active oxygen can only be activated with an access code and only by authorized persons. The system also recognizes whether there are people in the room and only allows operation in empty rooms. As soon as a person enters the room, the system stops the cleaning operation. Since the room must not be entered for at least 30 minutes after the end of the cleaning with active oxygen, it is advisable to carry out cleaning at times of less frequent use, for example at night.
Air movement through the whole room generated by the
ViraClinAir® type VAC 3 and VAC 4 in toroidal form using the Coandâ effect.
Toroid

AIR DISTRIBUTTION

How does ViraClinAir® achieve its patented air flow?


ViraClinAir® uses various air flow effects to direct the air in the room in a toroidal shape from top to bottom, thus preventing the horizontal exchange of breathing air from person to person.

  • The Coanda Effect. This leaves the air relatively free of turbulence on the ceiling and floor. Using this effect ensures that the air on the ceiling runs to the next wall and flows down there. On the floor, the air flows back to the intake opening of the ventilation. The external air circuit fills the entire room.

  • The air movement in the room is similar to a toroid, the ceilings, the walls and the floor are used as an interference-free path by the Coanda effects. Lateral air currents emanate from this flow and turbulence forms, which ventilate the entire room.

  • Laminar currents arise at the nozzles of the ViraClinAir®. After a certain distance they change into a turbulent flow, so that the middle room can also be supplied with a good exchange of air.

  • There are also cross nozzles that blow off the inner space

At the same time, the device also ensures optimal distribution of cleaned air in the room.

AIR JET ADJUSTMENT

The following modifications are available:

1. Positioning in the middle of the room

Standard version for positioning in the middle of the room

2. Positioning in the middle of the room

Positioning in the middle of the room with ViraClinAir® VAC3 / 4 –W angle attachment

3. Positioning in the corner of the room

Positioning in the corner of the room with ViraClinAir® VAC3 / 4 -W

MODELS AND PARTS

the different ViraClinAir® models in an overview:


The ViraClinAir® room air purifier is developed in 2 different basic models, the VAC 3 & VAC 4, each with 3 different types (-UNI, -H, -W) and offers the best possible solution for almost every room condition.

DATA

Of the different ViraClinAir® model types


The Power Model ViraClinAir® VAC4

Standard Functions:
The ViraClinAir® VAC4 room air purifier corresponds in its basic functions to the ViraClinAir® VAC3 but offers more power for larger rooms.
Overview basic data VAC 4:
  • Air volume exchange: up to 3000m³ / h
  • Range: up to 9m in radius
  • Current consumption: - 680 watts (for the fan)
  • Dimensions: total height adjustable from 245cm to 345cm
  • Basic unit 520 x 520 mm, height 1530, air nozzles Ø 700mm
  • Volume: 35 - 55 dB depending on the air flow
  • ISO ePM2.5 filter (F7) fine filter as a pre-filter
  • Weight: 92 kg, easy to move on lockable castors
Filtersystem of ViraClinAir® VAC4, patented Air nozzles of ViraClinAir® VAC4, Transportation wheels at the bottom of ViraClinAir® VAC4

The basic model ViraClinAir® VAC3

Standard Functions:
  • A strong fan with good sound insulation ensures up to 20 air changes per hour, depending on the size of the room.
  • A HEPA filter ensures 99% disinfection of the air, the remaining germs are safely killed by a strong UV-C light.
  • Height adjustable from 2.7m to 3.5m
  • Easily dismantled into individual parts for transport and easy to move on castors
  • Blow-off angle adjustable according to space requirements.
  • The integrated flooding with active oxygen ensures targeted destruction of viruses and prevents the formation of biofilms, bacteria and fungi.
  • The existing UV-C radiation only lets germ-free air into the room and is safely covered in the device.
  • The device can stand in the middle of the room or on the side wall (possible with accessory W).


Overview of basic data of the VAC 3:
  • Air volume exchange: up to 1500m³ / h
  • Range: up to 7m in radius
  • Power consumption: 370 watts (for the fan)
  • Dimensions: Height 260cm to 340cm adaptable to the ceiling
  • Body Ø 500mm, base Ø 630mm, air nozzles Ø 700mm
  • Volume: 35 - 59 db depending on the air output
  • ISO ePM2.5 filter (F7) fine filter as a pre-filter
  • HEPA filter with H13 filter class as the main filter
  • Weight: 45kg, easy to move on lockable castors
Head of ViraClinAir® VAC3, rollable bottom of the ViraClinAir® VAC3, computercontrol with display of ViraClinAir® VAC3

ADDITIONAL FUNCTIONS & FEATURES

for the ViraClinAir® VAC3 and VAC4


The ViraClinAir® room air purifier is developed in 2 different basic models, the VAC 3 & VAC 4, each with 3 different types (-UNI, -H, -W) and offers the best possible solution for almost every room condition.

Additional functions of ViraClinAir® VAC - UNI

Overview
  • Function monitoring of the HEPA and prefilter and the output of the UV-C radiation by sensors.
  • In automatic mode, the motion sensor detects whether there are people in the room, the aerosol sensor also detects whether the air is polluted. The ventilation adapts to the existing air pollution and works in an energy-saving manner.
  • When the flooding with active oxygen is switched on, the filters are freed from any viral load. The flooding with active oxygen only works when there are no people in the room.
  • To be on the safe side, the active oxygen generator switches off immediately when a person approaches.
  • THE CO2 sensor shows the air condition and gives an alarm to ventilate if the CO2 values become uncomfortable.

Additional functions ofViraClinAir®VAC-H

Overview
The ViraClinAir® VAC-H model corresponds in its basic functions to the selected basic model,but isstill equipped with heating so that the room does not cool down in winter despite thewindows beingopen.

Additional functions of attachment W of ViraClinAir® VAC-W

Overview
The model type ViraClinAir® VAC with attachment W corresponds in its basic functions to theselected model, but is optimized for the placement in the corner of the room and also the sidewall.

Additional functions of attachment AW des Modell Typ ViraClinAir® VAC-AW

Overview
This function can disinfect rooms with their surfaces within a short time with disinfecting wateraerosols.This function is intended for conference rooms with changing occupancy or hospitalrooms.

ESSENTIAL ADVANTAGES

ViraClinAir® overview:


  • Inexpensive
  • High performance up to 3000 m³/h
  • Safe with additional UV-C light cleaning and internal disinfecting of filters
  • The device permanently checks itselfe for safe function
  • The device reaches up to the ceiling so that a complete room ventilation from top to bottom is made
  • Use if various air effects: Laminar flow at the air nozzles to get far into the room. Distribution of air through the Coanda effect on the ceiling and centrifugal forces of the air through the circulation of air flow, so that ventilation takes place quickly and effective.

Effective against:

• Viruses
• Covid-19
• Bakteria
• Germs
• Allergenes

Open Up!

• Transportable
• Easy to install
• For rooms up to 200sqm

Roomair Purifier

• Developed in Germany
• Made in Switzerland
• air surveillance
• self-cleaning
• highest security

ViraClinAir® is an fullautomatic air purifier,
developed in Germany to deal with the Covid-19 crisis.
Made in Switzerland.
